IP forwarding is a concept to make Linux machine to send data from one network to other, this is same as a router(A router is a device to send packets from one point to other point depending on the packet destination/rules etc).



		Why we need IP forwarding on a Linux machine?





		Ans : We need IP forwarding on a Linux machine because to make it as a router or proxy server to share one internet connection to many client machines.





		Let me explain how this will work with small example.





		You have 2 machines which are in different network(PC1 in 10.0.0.0/255.0.0.0 network and PC2 in 192.168.0.0/255.255.255.0 network) and connected with a Linux machine(which is having two network interfaces). The IP address is as follows..





		PC1: 192.168.0.1/255.255.255.0 default gateway:192.168.0.2





		PC2: 10.0.0.1/255.0.0.0 default gateway:10.0.0.2





		Linuxbox eth0 : 192.168.0.2/255.255.255.0





		eth1 : 10.0.0.2/255.0.0.0

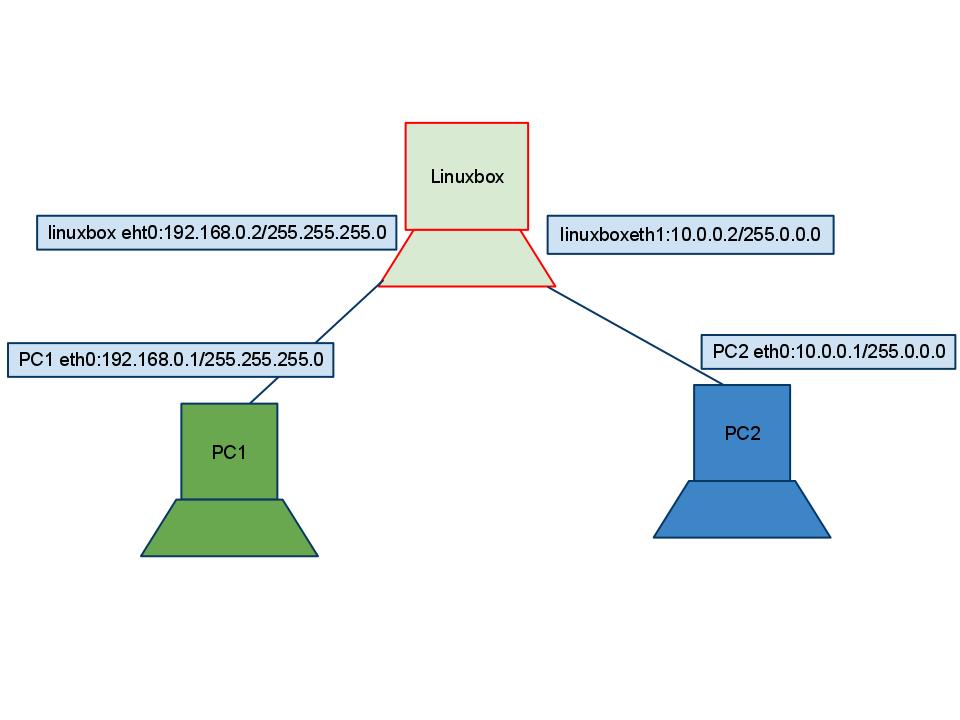

		and Linuxbox is having two LAN cards which are connected to both the machines as shown below











		So do you think PC1 is capable of communicating with PC2?

		Ans : The answer to this question is No.

How to make PC1 to communicate with PC2?
Ans : The answer is enable ip forwarding on Linux machine. Some times this is known as bridging two networks.

To make IP forwarding we have to edit /etc/sysctl.conf as shown below. Open sysctl.conf and change the value of “net.ipv4.ip_forward” from 0 to 1 and save the file

#vi /etc/sysctl.conf

net.ipv4.ip_forward = 0

to

net.ipv4.ip_forward = 1



		Once it's done still you are not able to ping from PC1 to PC2. We have to restart the linuxbox to take this update to kernel.





		Why to restart if it's a production machine try below command to make your linuxbox aware of IP forwarding without a restart.





		echo 1 > /proc/sys/net/ipv4/ip_forward





		Now try to ping from PC1 to PC2 which will ping successfully.
